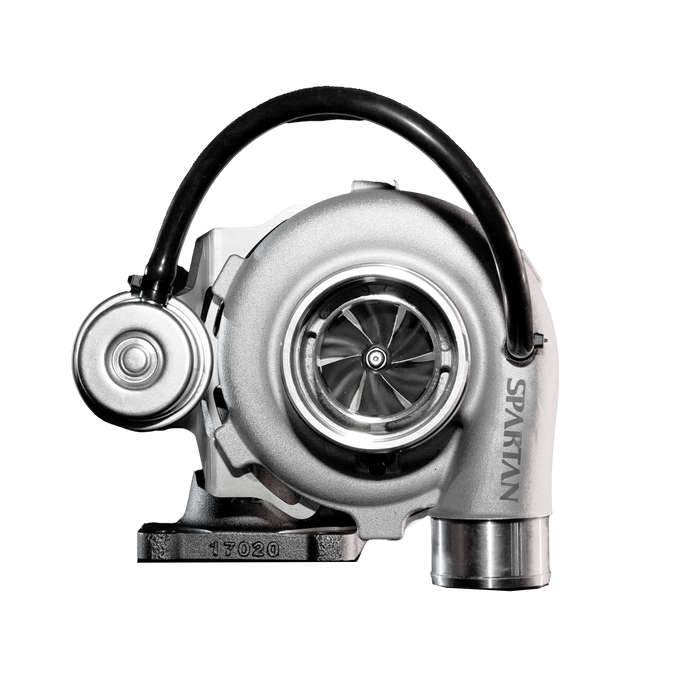

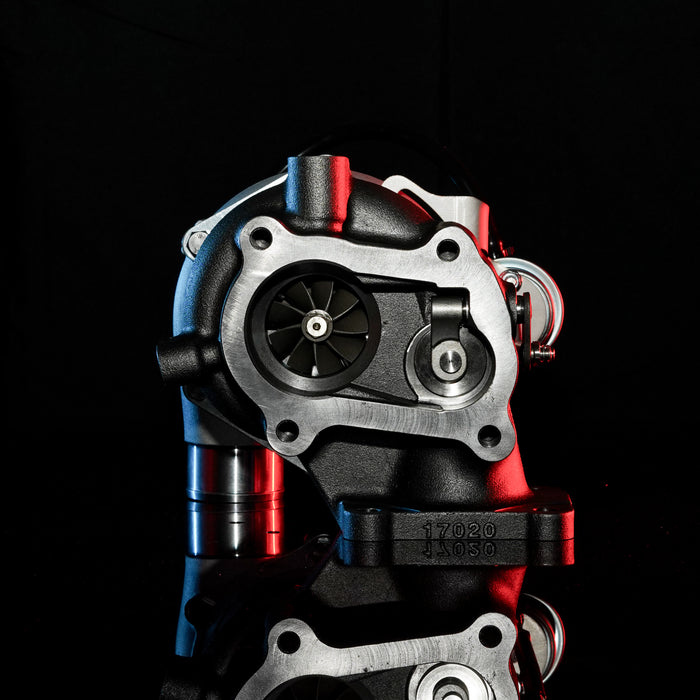

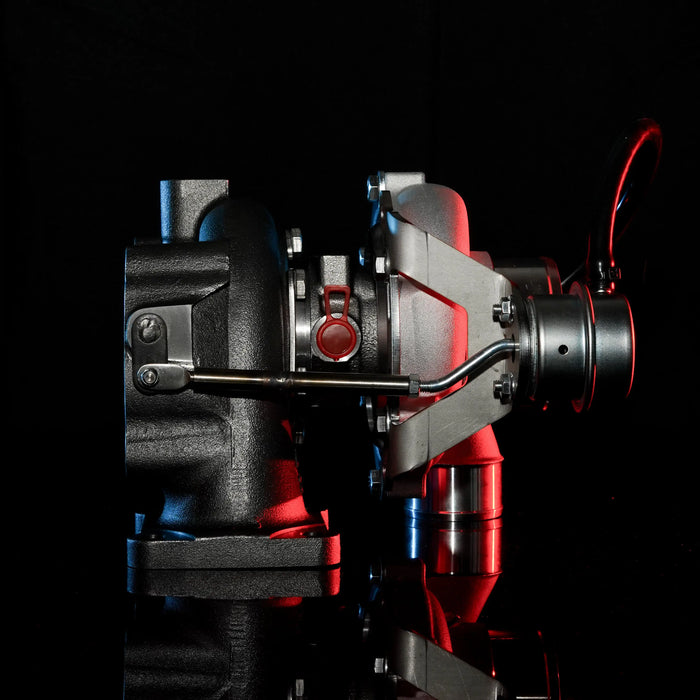

Toyota Landcruiser 80 Series / 100 Series 1HD-T/ 1HD-FTE /1HZ / 12HT High Flow Turbo Charger
Brand: Spartan Turbocharger Systems.
Model: CT26-STS50.
Part No: Toyota CT26 / 17201-17010 / 17201-17040
Vehicle Fitment:
- Toyota Landcruiser 60 Series 12HT
- Toyota Landcruiser 80 Series 1HD-T/1HZ+T
- Toyota Landcruiser 100 Series 1HD-FTE (Piping Mods Required)
- Toyota Landcruiser 105 Series 1HZ+T
Warranty: 12 Months/25,000KM.
Toyota Landcruiser 80 Series / 100 Series Spartan Turbo Spec
Boost Rating; 12PSI-28PSI.
Cooling Type: Oil & Water.
Bearing System; Dual Ceramic Ball Bearing.
Compressor Wheel: STS 50MM/67MM 6+6 Billet.
Turbine Wheel: STS 54MM/47MM 9 Blade.
Turbine A/R: .49 CT26 4 Bolt Pattern.
Actuator Setting: 14PSI Pre Set.
Turbocharger Info.
STS Has Specially Made These Turbochargers To Help 1HD-T/1HD-FTE
Owners Have a Turbocharger That Can Make HP And Reliability At The Same
Time! We Spec These Units Out With Parts That Work! These Units Are
Designed To Make Up To 28PSI, Lower EGTS & EMP & Drive Better Than
Your Factory CT26!
Through Vigorous Testing We Can Comfortably Say That These Units Make
Between 180WHP-220WHP( Dependent On Vehicle Set Up & Tuner).
